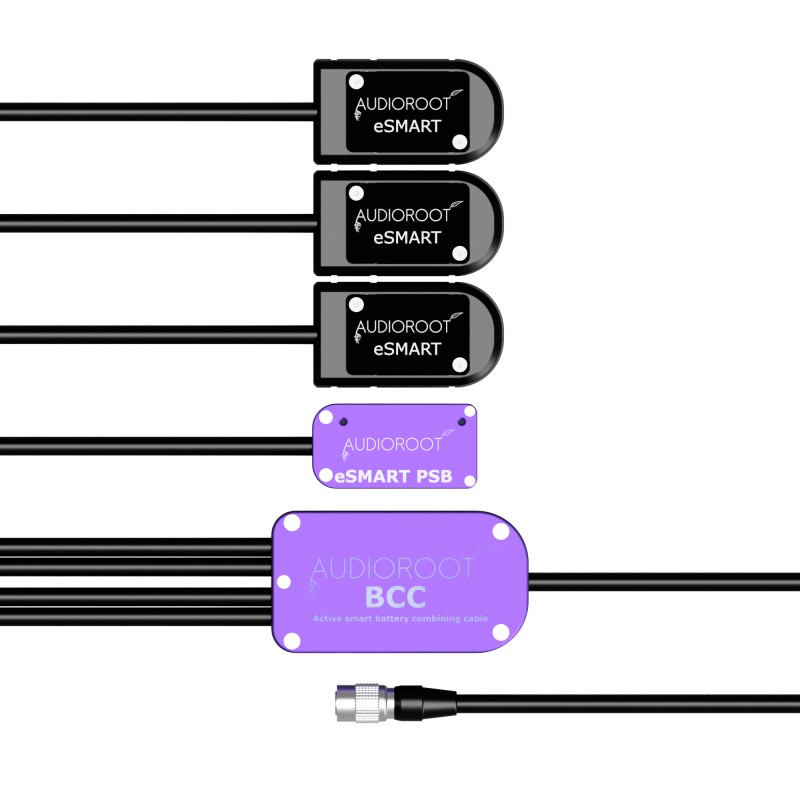

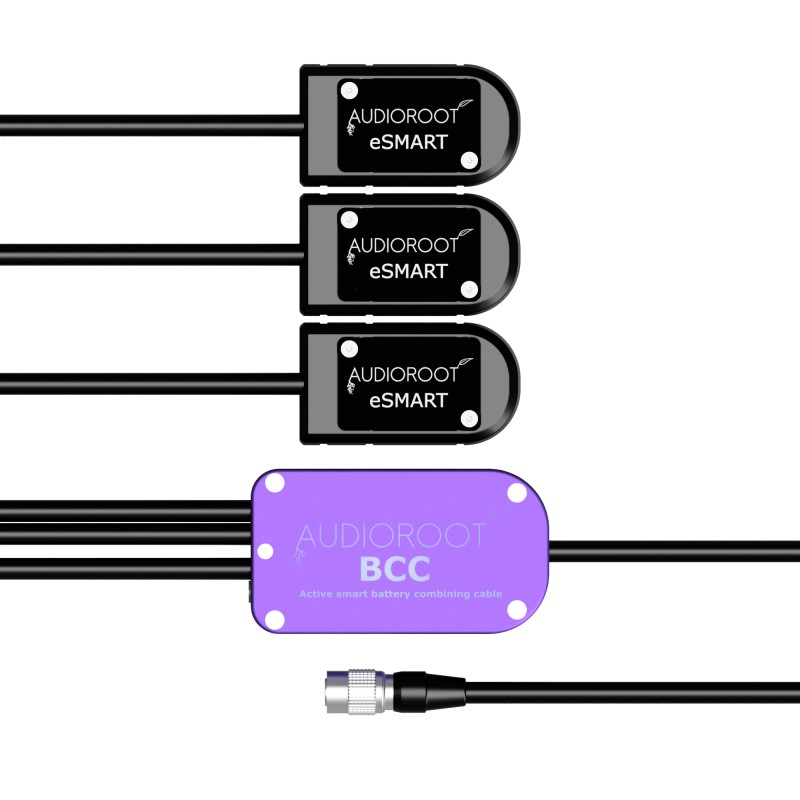

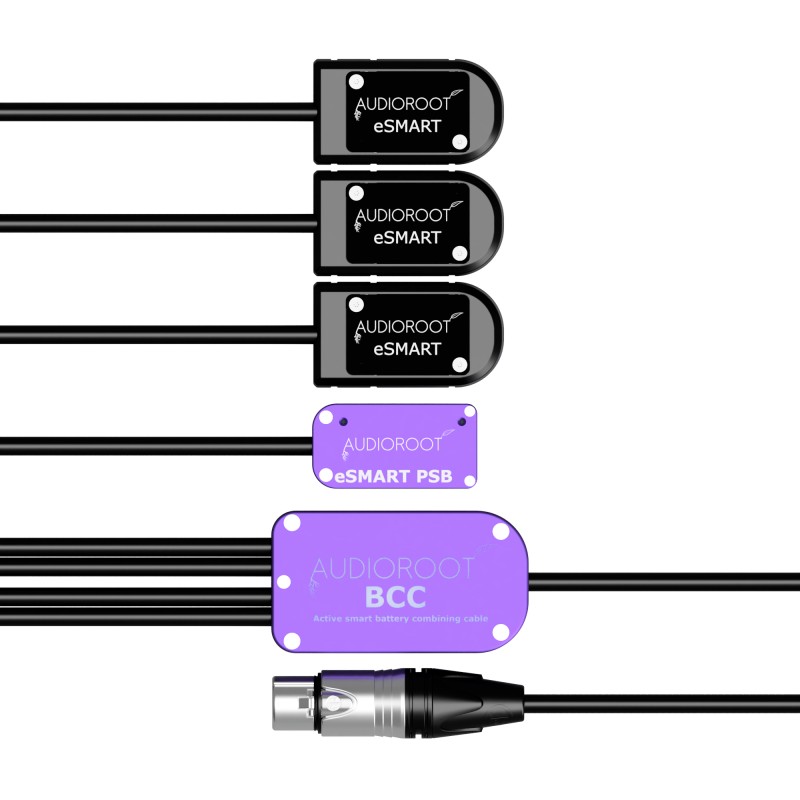

BCC Power combining cable - up to 4 inputs - with telemetry

The BCC is an active power and data (SMBus) combining cable designed to connect up to four smart batteries or power sources into a single DC output. It intelligently merges both power and telemetry, emulating a single smart battery for seamless integration with any SMBus-compatible power distributor or device.

Whether you're working with HRS4, TA4F, or XLR4F output connectors, the BCC ensures robust, streamlined power delivery. Its advanced design makes it compatible with all Audioroot smart battery power distributors, including the eSMART BG-DU, DUO, TRIO, and K-ART.

Key Features:

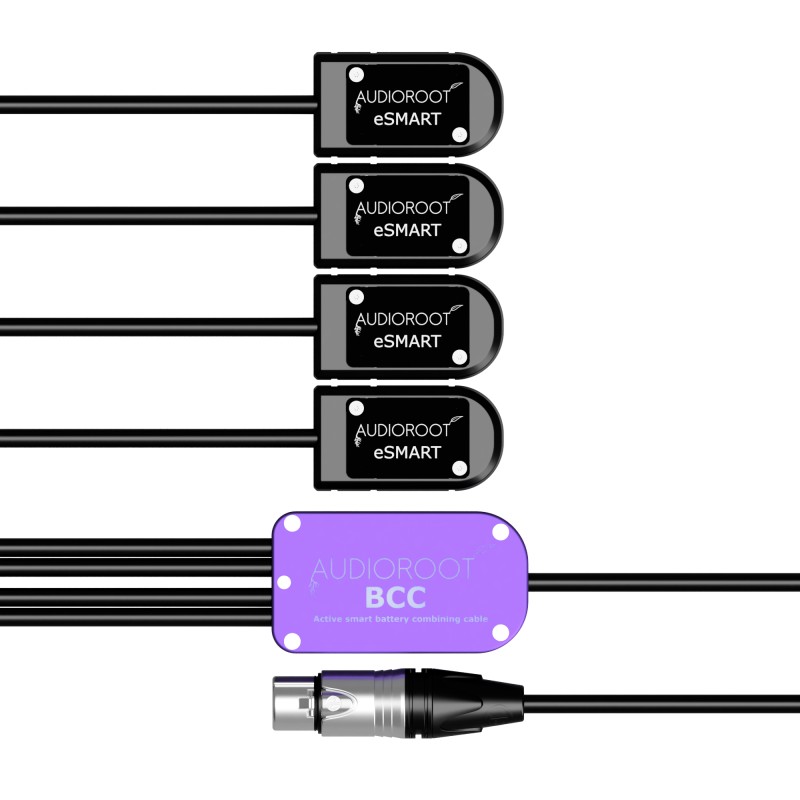

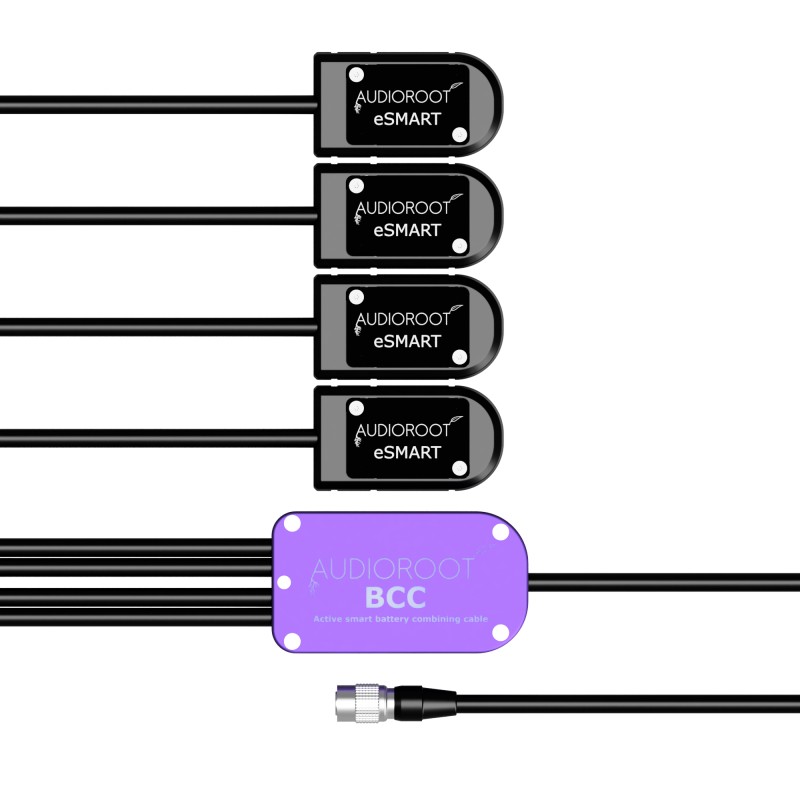

• Combine up to 4 power sources (smart batteries or external power)

• Active SMBus data merging – emulates a single smart battery

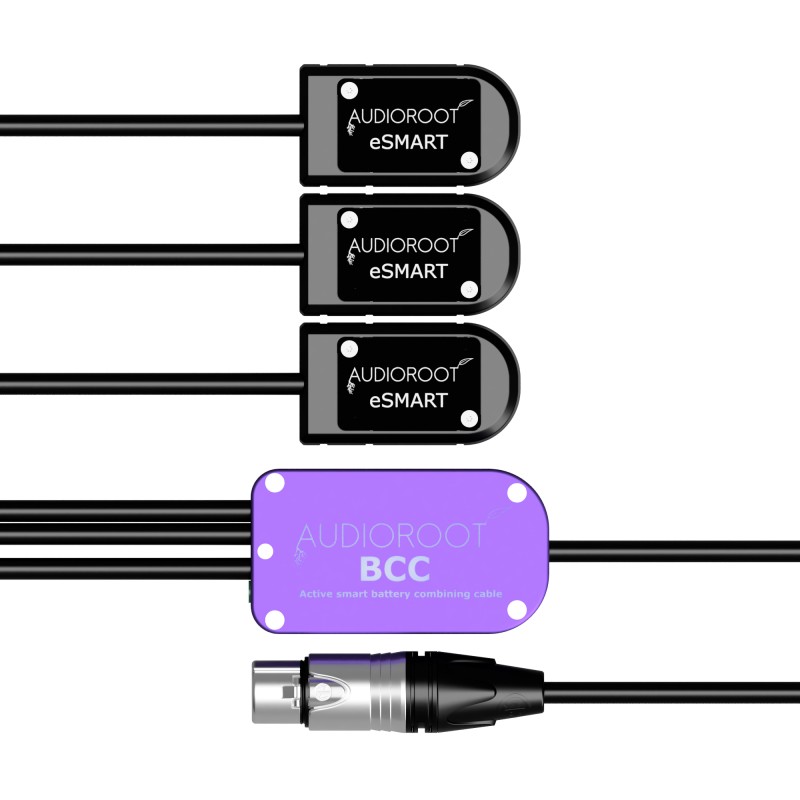

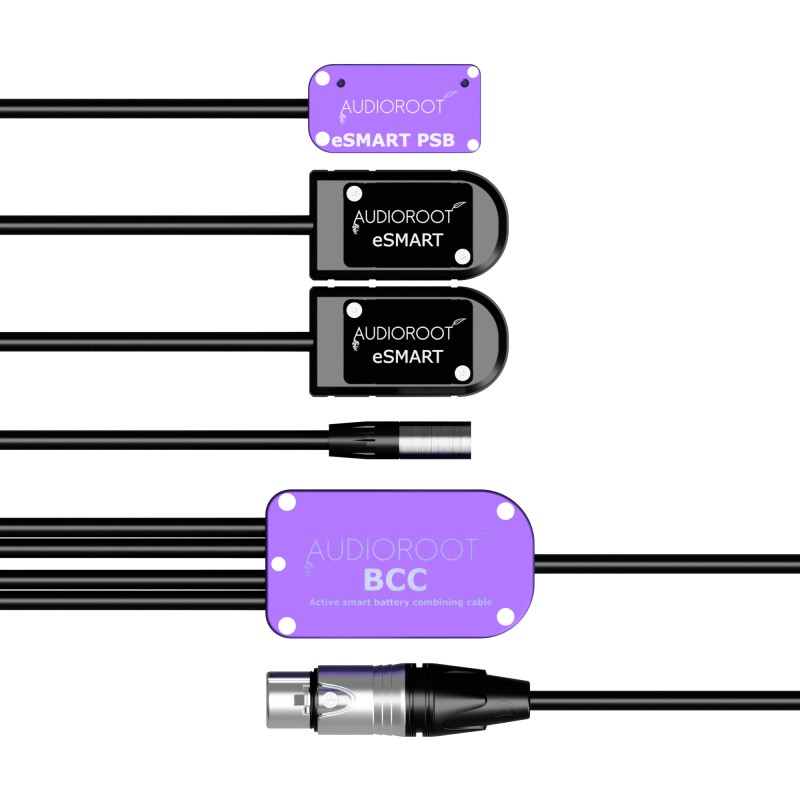

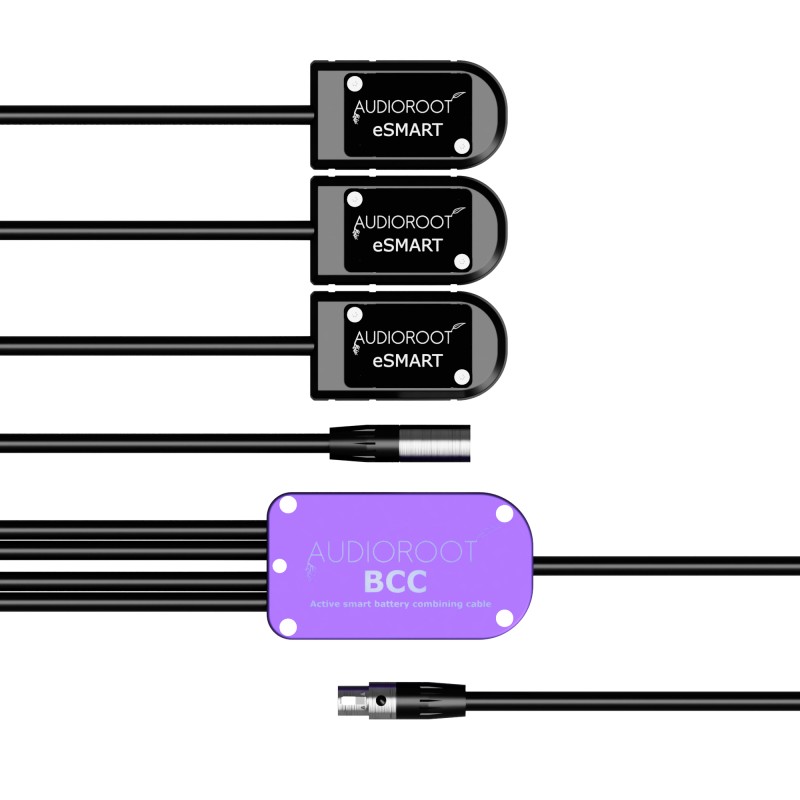

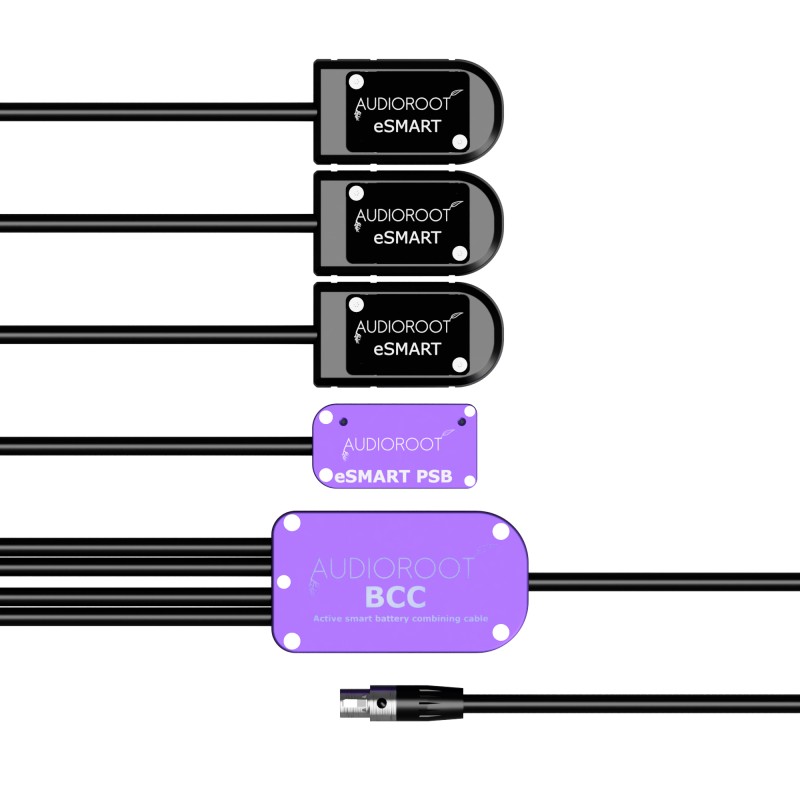

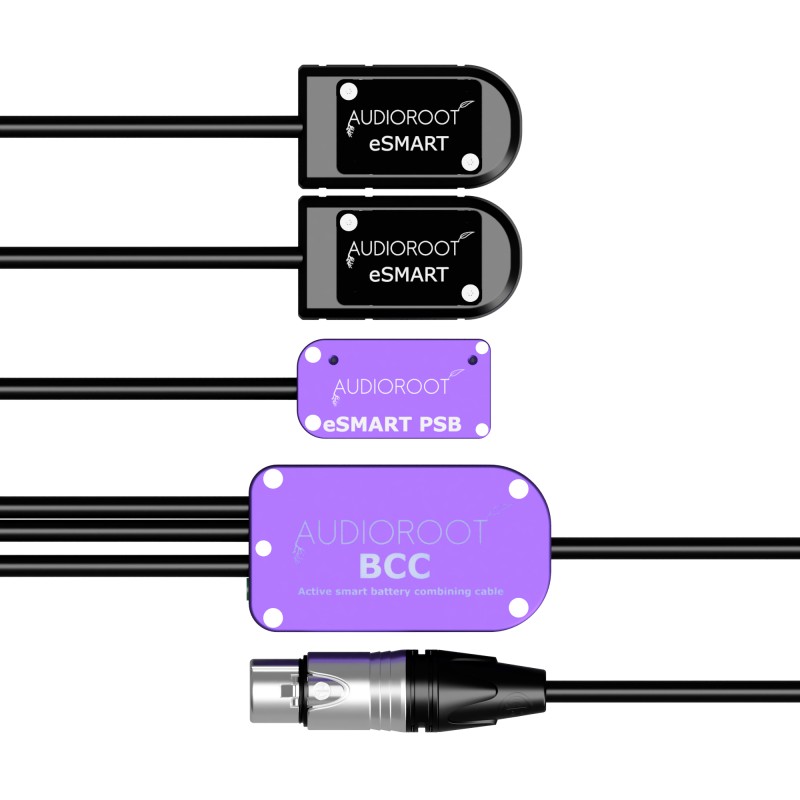

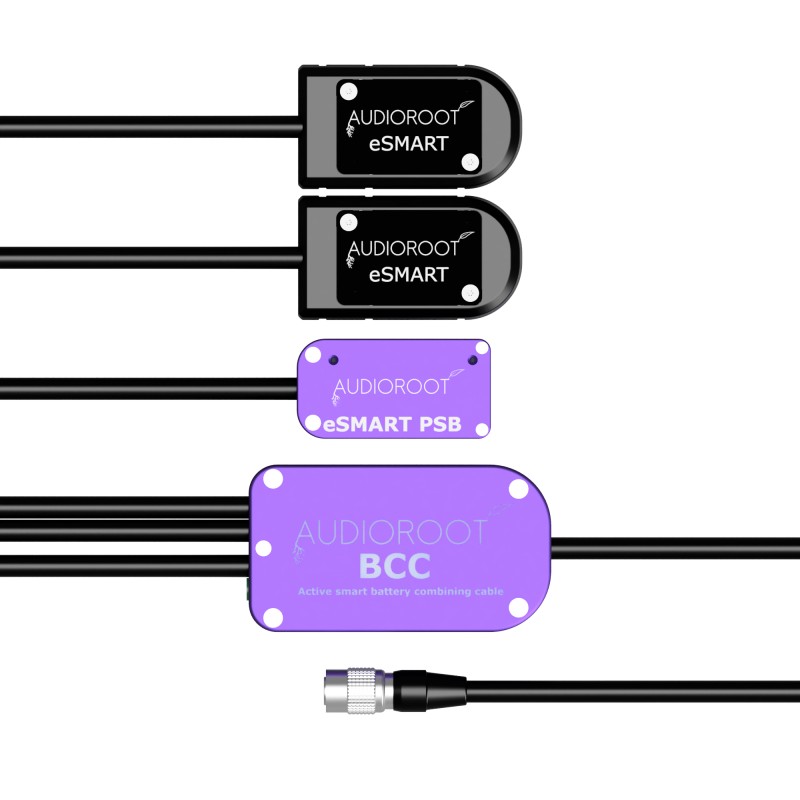

• Customizable input configurations for connectors 3 & 4:
  – No connector
  – Battery cup
  – TA4M
  – USB-C

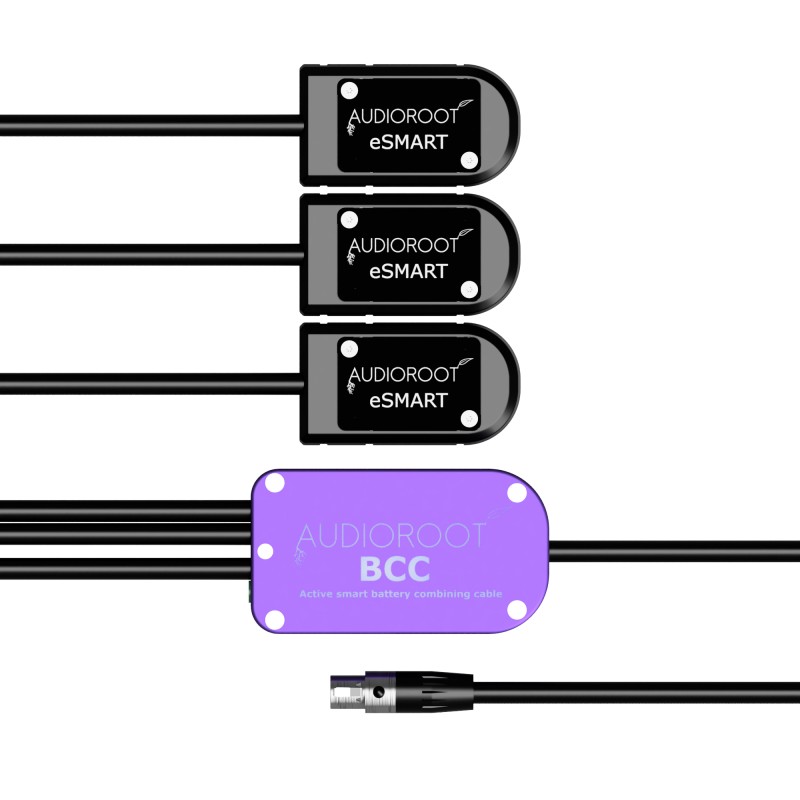

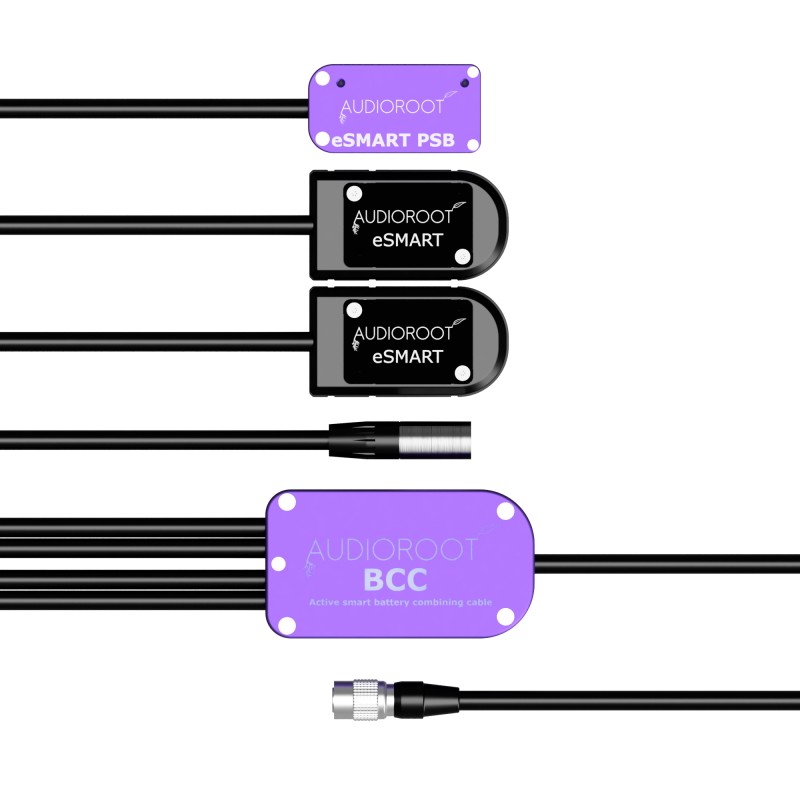

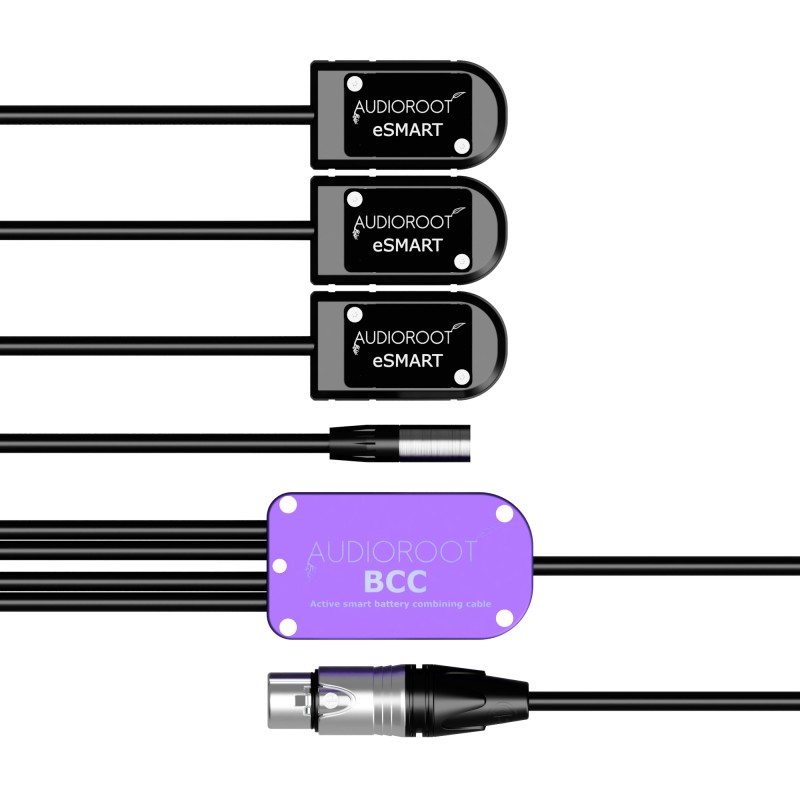

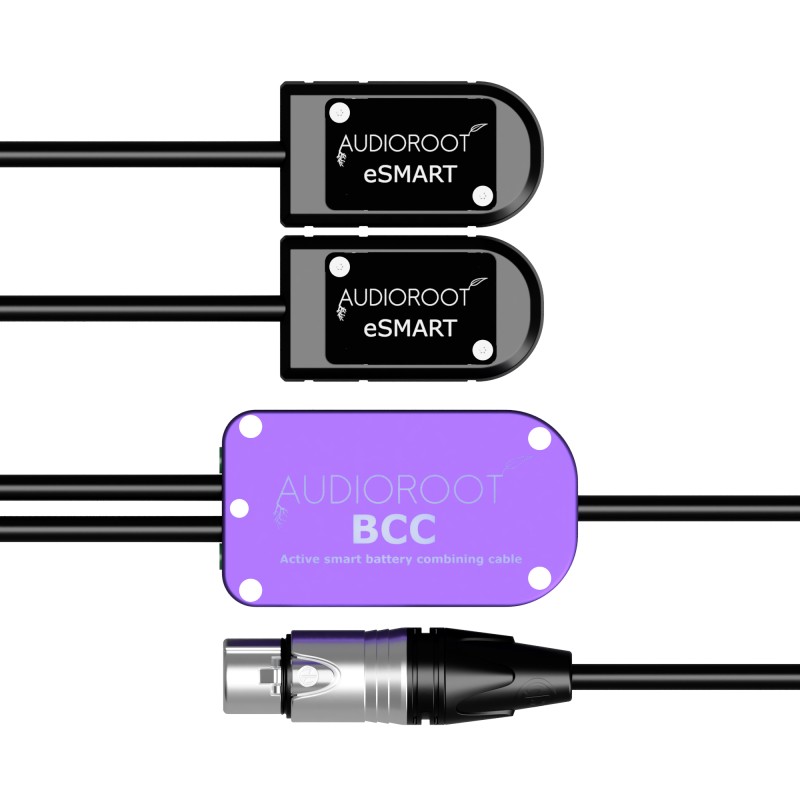

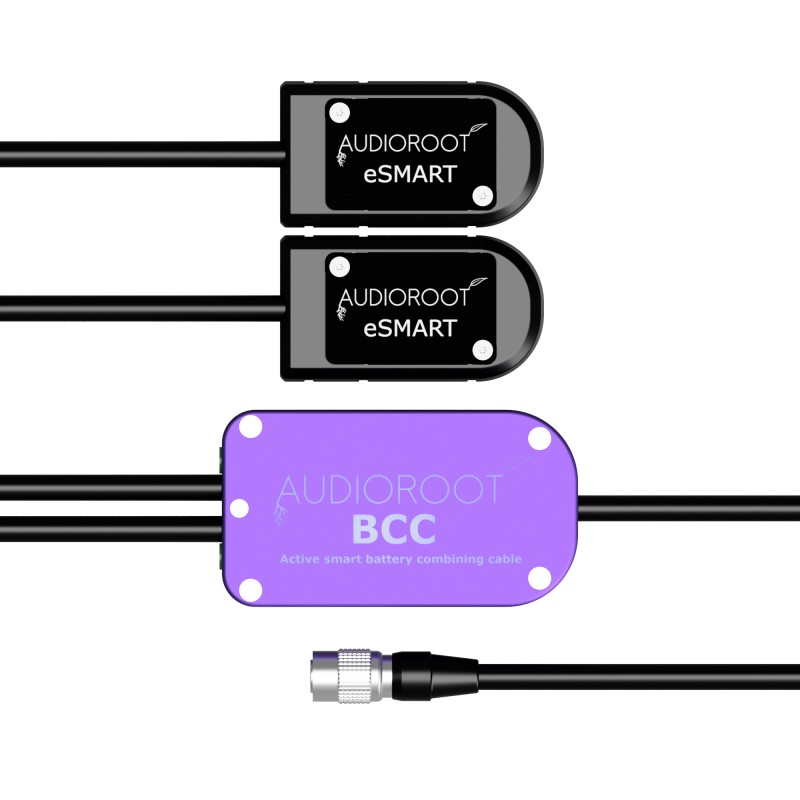

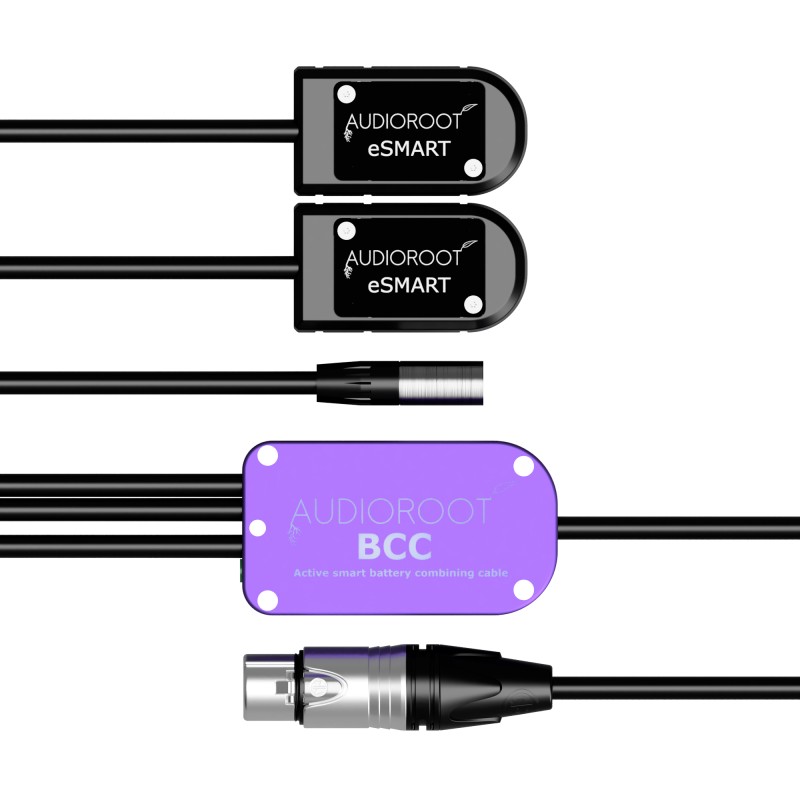

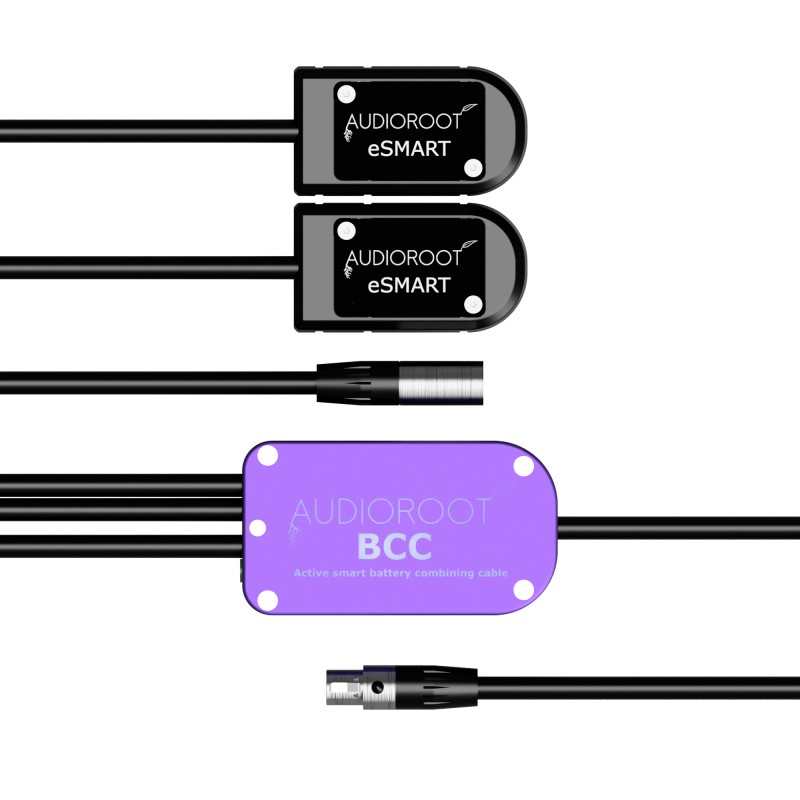

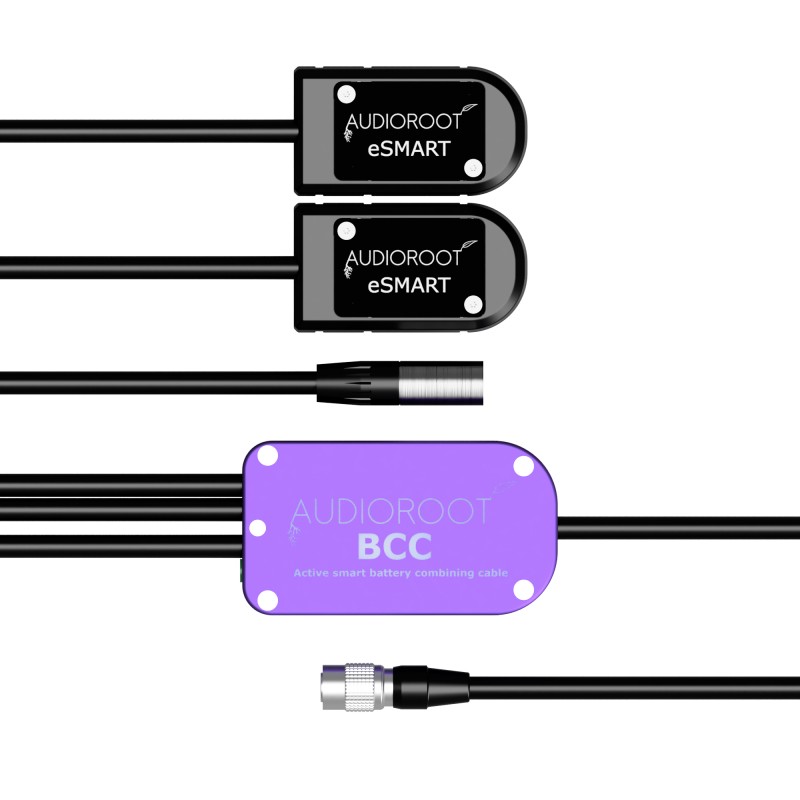

• Output connector options: HRS4, TA4F, or XLR4F

• Ideal for:
  – Expanding battery capacity
  – Battery hotswapping
  – AC operation with battery backup

⚠️ Note 1: When selecting the USB-C power input option, it is strongly recommended to use a PPS-compatible USB-C Power Delivery (PD) adapter. This ensures proper power delivery from the AC source and prevents unintentional draining of your 16.8V Li-ion batteries.
⚠️ Note 2: When using TA4M as a DC input, we recommend using a power supply with a voltage output of ≥ 16.8V, such as the Audioroot DUO-PSU, to guarantee optimal performance.

The BCC is the perfect tool for creating high-capacity, cost-effective power setups while maintaining full smart battery communication.
